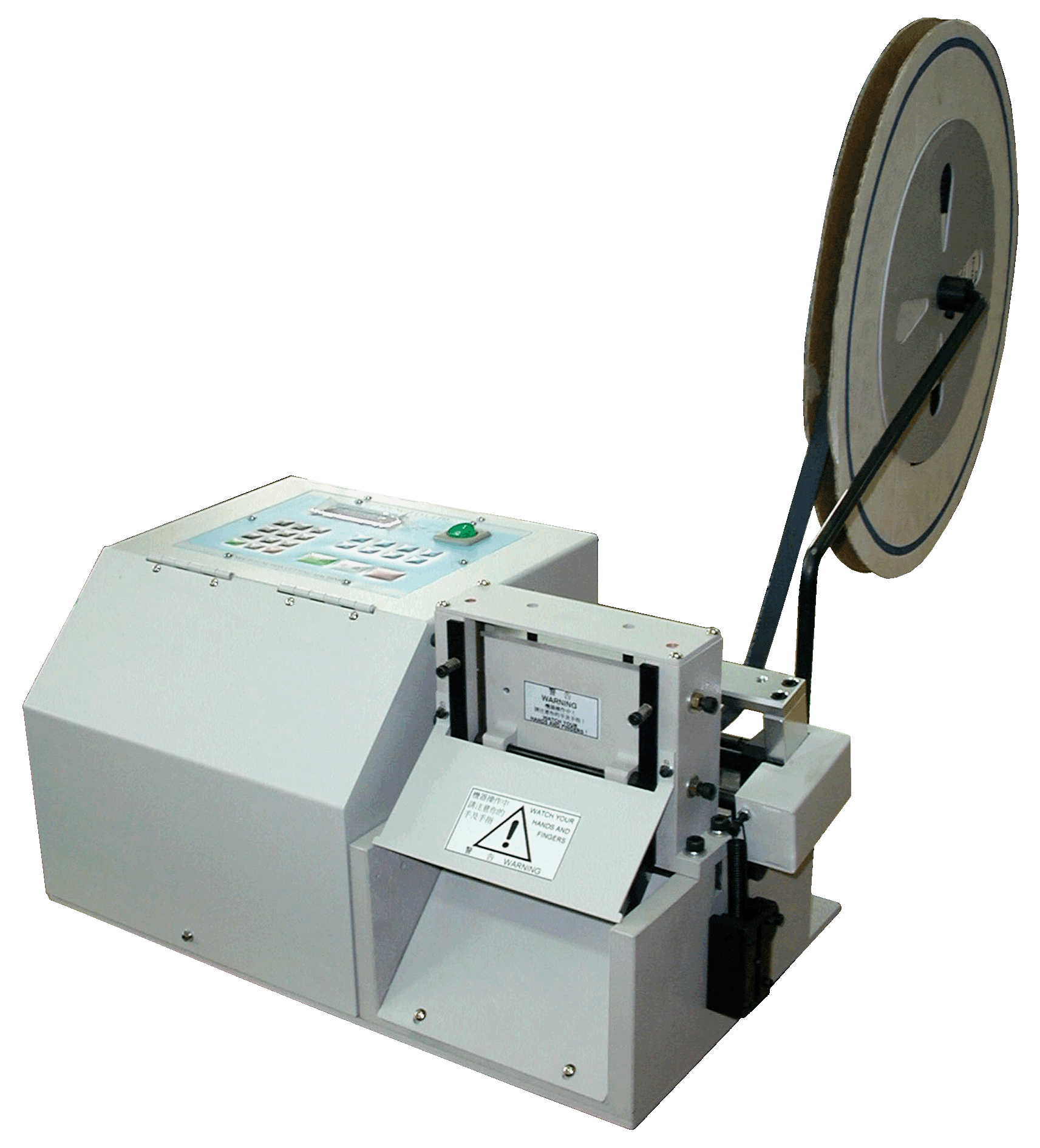

FE-6C多用途切斷機
Multi-Function Cutting Machine
- 特點說明 FEATURES
- 規格 SPECIFICATIONS
- 示範影片VIDEOS
特點說明 FEATURES
特點說明 FEATURES
- 本機採用步進馬達控制,準確度高。送線速度可微調。
- 面板按鍵有中文或英文版,一目了然,易操作。切斷長度視材質可微調。
- 切料寬度可達80mm,適用熱縮套管、排線、編織線等多用途。
- 操作可單動或連動。送線、切刀均可寸動操作。
- This machine is controlled by step motor , which brings more accurate result. Wire feeding speed can be adjust.
- Chinese or English touch panel available, easy control. Depends on the input, cutting length can be adjust.
- The cutting width of the machine can reach up to 80mm , it’s suitable for heat shrinkable tube, flat cable, copper weave wire, etc.
- Step or auto mode can be select. Feeding and cutting can be shift step by step.
規格 SPECIFICATIONS
規格 SPECIFICATIONS
| 機型 MODEL | FE-6C |
|---|---|
| 外觀尺寸 DIMENSION | 520x300x280mm |
| 重量 WEIGHT | 32 Kgs |
| 電源 POWER SUPPLY | AC110V/220V-50/60Hz |
| 切斷長度 CUTTING LENGTH | 1~ 60000 mm |
| 切斷寬度 Cutting width | Max.80mm |
