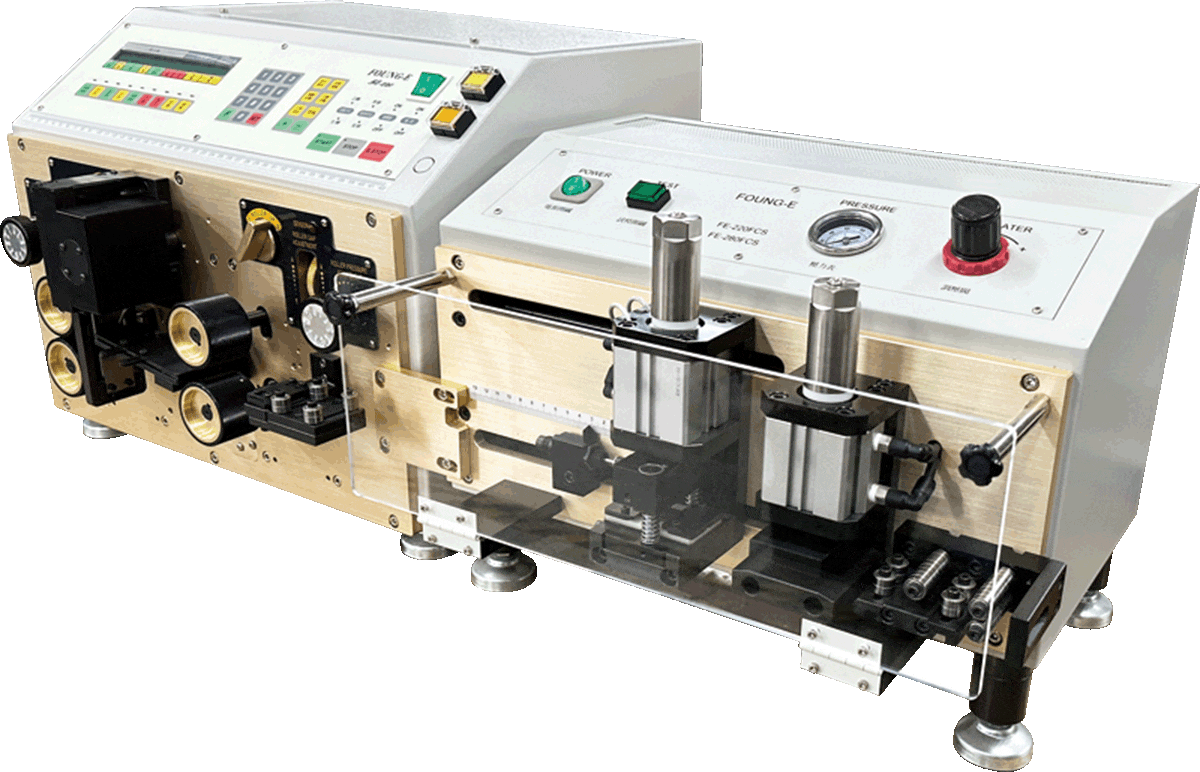

FE-280N-L3+FCS併線排線分線切線剝皮機

Flat Cable Cut , Split & Strip Machine ( For 2~10 pins wire )

特點說明 FEATURES

1. 專用於2486併排線自動分線切線剝皮。
2. AWG#18-AWG#28，2~10PIN 均採用卡式分線座。
3. 特殊齒刀切剝，切口整齊。
4. 分線刀採用組合式，換刀容易。
5. 尺寸調整、分線長度，單頭或雙頭均由電腦操作控制。
6. 分線長度可達100mm。
7. 併線長度35mm以上均可由本機操作。

1. Specially apply to flat cable cut, split, and strip with computer control type.
2. Apply to AWG#18 ~ AWG#28, 2~10 pin with CASSETTE applicator.
3. Special teeth blades design to ensure cut and strip shape.
4. Assembly type of split blade, easy exchanged.
5. Computer key in to simplify wire split length. (Both sides or single side.)
6. Maximum split length is 100mm.
7. Minimum wire cutting length is 35mm.

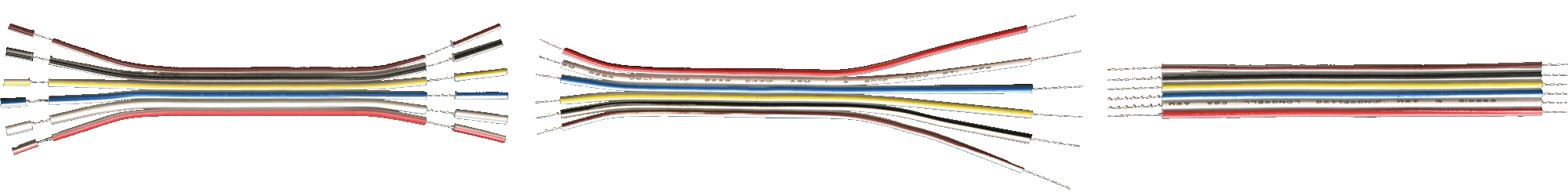

剝皮方式 STRIPPING METHOD
