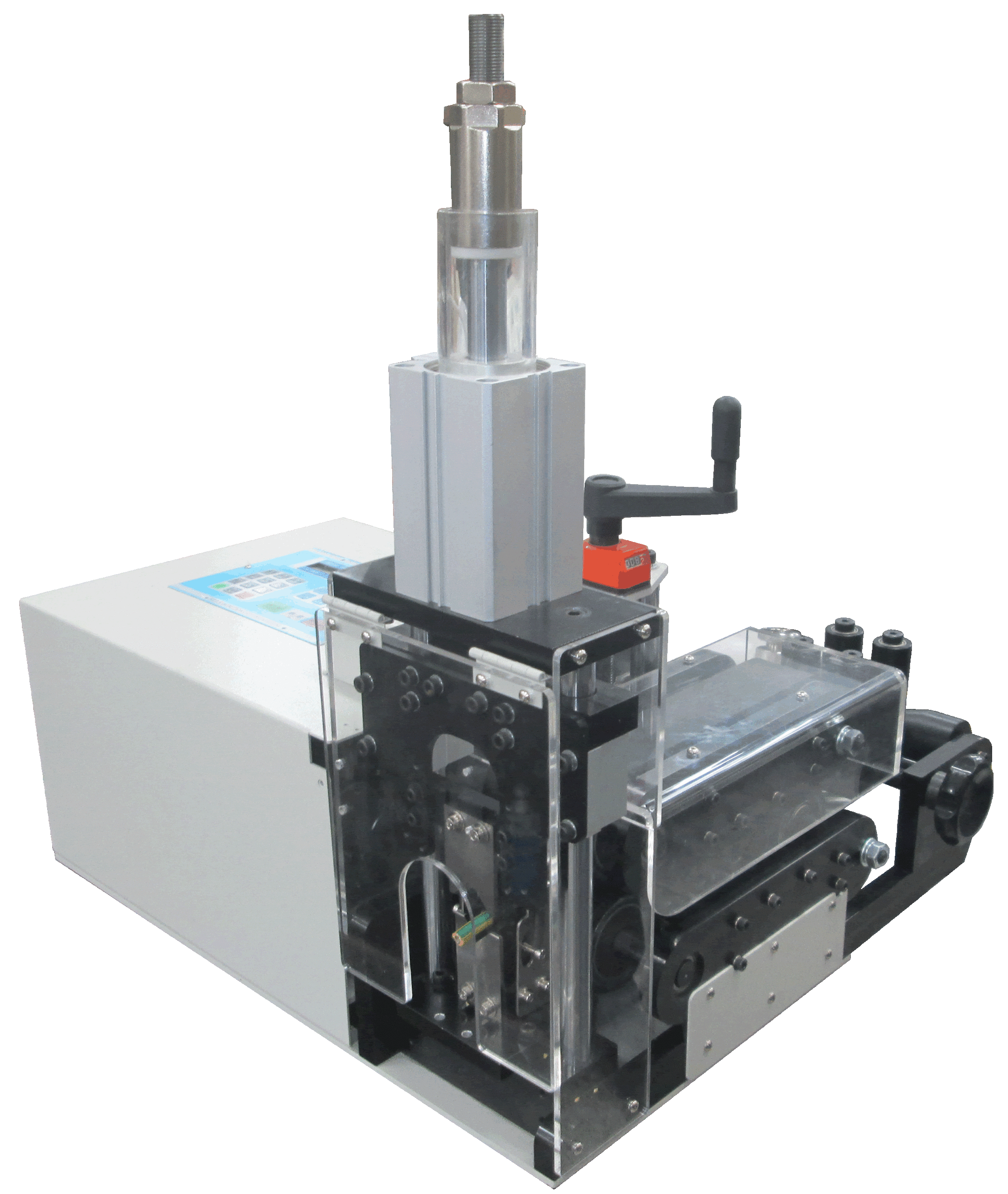

FE-6CR-A粗線圓線管切斷機

Round Tube Cutting Machine (Thick Wire)

特點說明 FEATURES

1. 本機採用伺服馬達驅動送線，時規皮帶送料，準確度高，速度可微調。
2. 面板按鍵有中，英文版，一目了然，易操作，切斷長度視材質可微調。

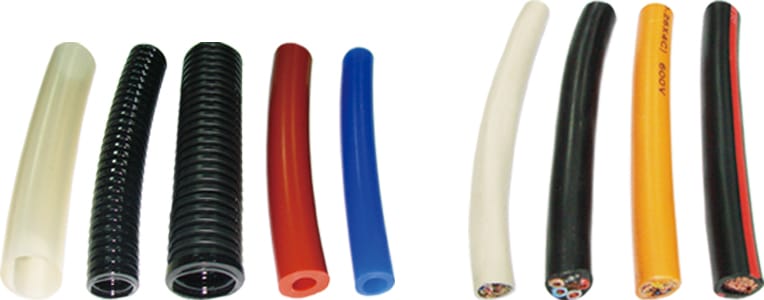

3. 專用於各式圓管，波紋管切斷，切斷面平整，可切最大外徑φ40mm。
4. 切刀座採用氣缸帶動，出力足，亦可選配切斷刀，最大切 AWG#6，φ15 mm的多芯CABL線。
5. 大卷粗線 (45 kgs) 需配合放線機 FE-AF160C 操作。

1. This machine is controlled by servo motor, Feeding by timing belt, which brings a more accurate result. Wire feeding speed can be adjust.
2. Chinese or English touch panel available, easy control. Depends on the input, cutting length can be adjust.
3. Specially for cutting round tube, ripple tube, neat cutting surface and he maximum the maximum OD is φ40mm.
4. Cutter block by air cylinder, enough output power, cutting blades can be optioned, maximum cutting cable wire AWG6 withinφ15 mm .
5. For big thick roll wires (maximum 45 kgs), need to fit with FE-AF160C wire feeder for smooth operation.

選配組 OPTIONAL SET

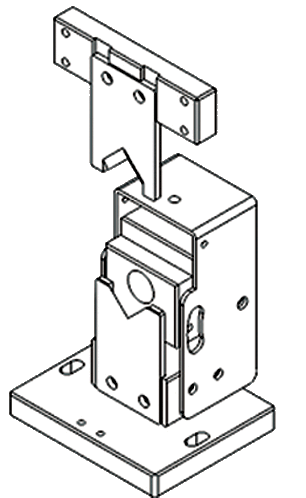

V切刀組

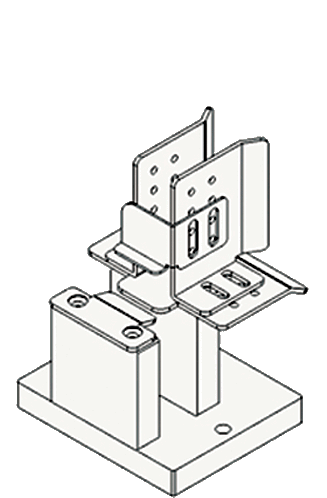

波浪管組

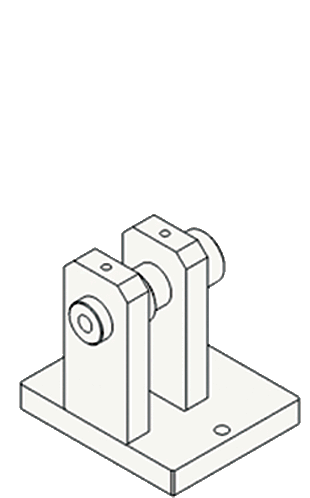

導管組
