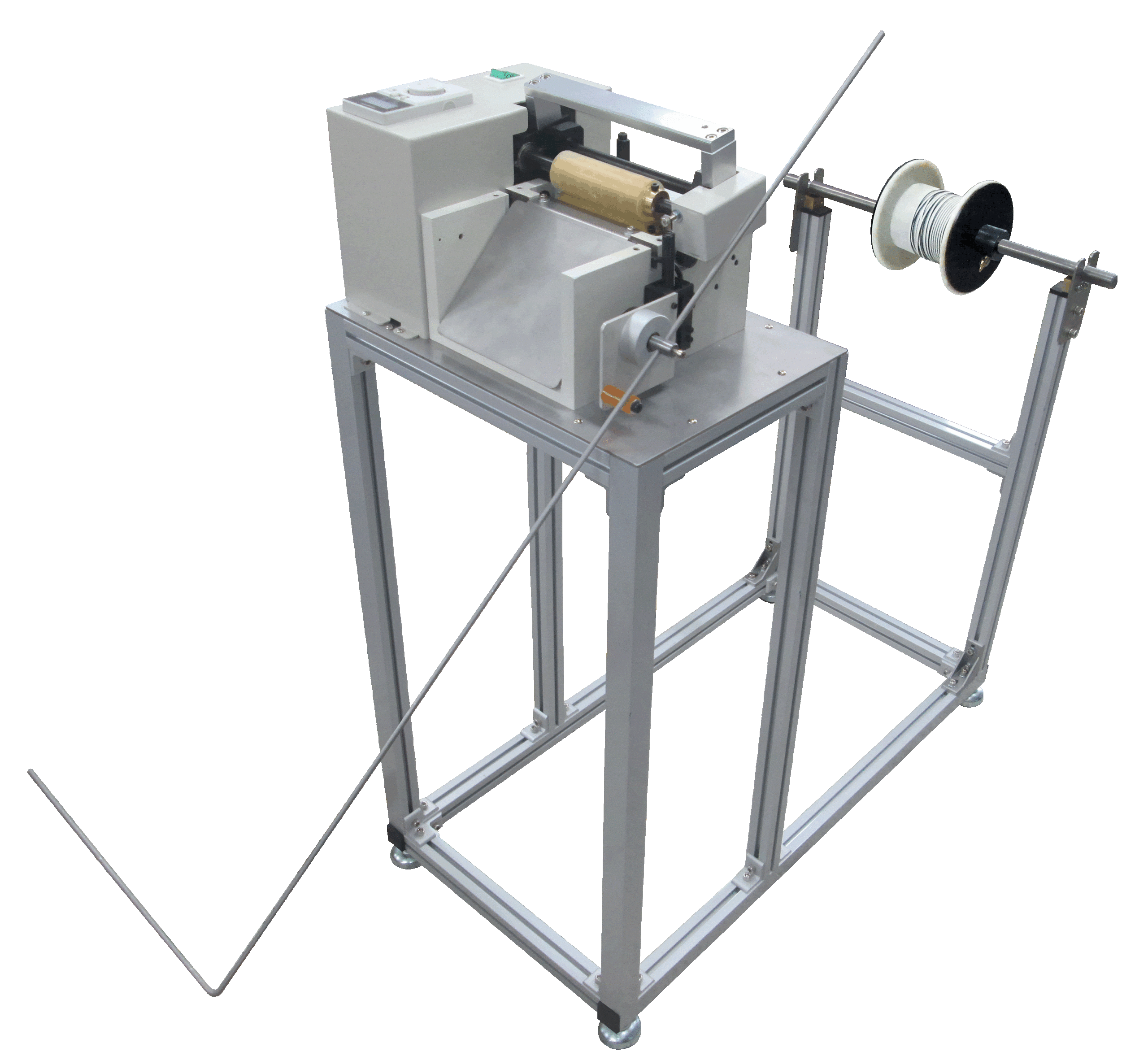

FE-AF-160F自動送線機

Auto Feeding Machine

特點說明 FEATURES

特點說明 FEATURES

  1. 本機採用 DC 無刷馬達驅動,無碳刷磨耗問題,扭力輸出穩定。
  2. 適合軸裝,丸裝外沿出線,透過預送帶動,輸出準確長度供裁斷。
  3. 送出速度可調整,配合各廠牌切斷機,裁線機,適時適量操作,提高產能及效率。



  1. Driver by DC brushless motor, less carbon wear out problem, stable output and force.
  2. Suitable for wire in spool, by wire pre-feeder, output length able to cut with accurate result.
  3. Feed speed can be adjust, can be use by wide range of other brand machine i.e. cutting machine, auto-wire cutting machine, improve capacity and efficiency.
規格 SPECIFICATIONS

規格 SPECIFICATIONS

機型

MODEL

FE-AF-160F

外觀尺寸

DIMENSION

750x480x935mm

重量

WEIGHT

30 Kgs

電源

POWER SUPPLY

AC110V/220V-50/60Hz

載重

Carry Weight

50 Kgs

適用線徑

APPLICABLE SIZE

視線材而定
(Depends on wire material)
