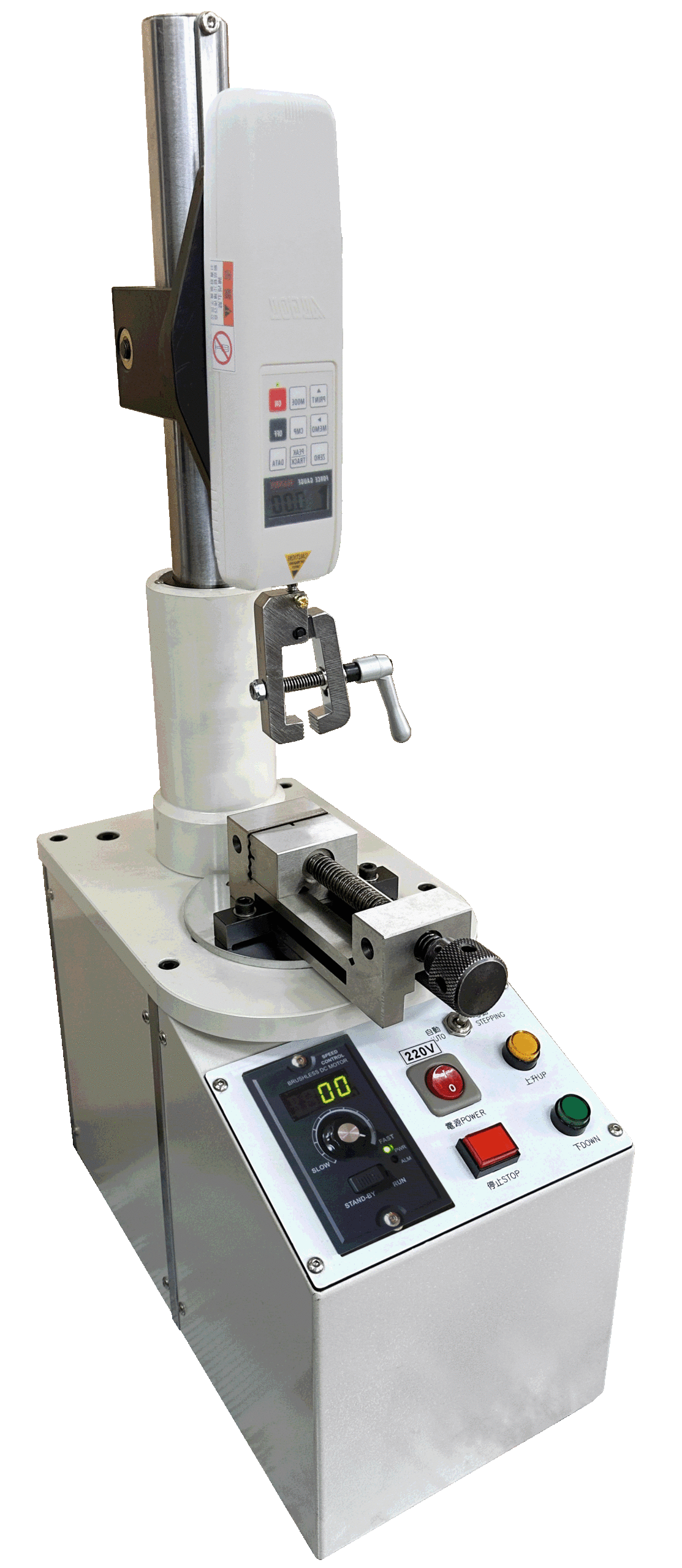

FE-T50W/T50W-E 自動推拉力測試機
Electrical Tension Tester
- 特點說明 FEATURES
- 規格 SPECIFICATIONS
- 示範影片VIDEOS
特點說明 FEATURES
特點說明 FEATURES
- 本機使用自動及寸動兩種控制方式,且可調整測試移動速度。
- 自動測試完成後並設計有自動回位功能。
- 體積小,功能大,測試推拉力精準穩定,並且操作容易。
- FE-T50W-E選配電子式拉力計50Kgs,100Kgs。
- It is designed with automatic and stepping move mode control, and speed can be adjust.
- It returns to the original position upon completion of automatic test.
- Compact configuration with powerful strength ensure the accurate and stable, easy to operate.
- Machine type FE-50W-E complete with digital force gauge series optional 50 Kgs or 100 Kgs.
規格 SPECIFICATIONS
規格 SPECIFICATIONS
| 機型 MODEL | FE-T50W, FE-T50W-E |
|---|---|
| 外觀尺寸 DIMENSION | 320x180x640mm |
| 重量 WEIGHT | 30 Kgs |
| 電源 POWER SUPPLY | AC110V/220V-50/60Hz |
| 衝程 STROKE | 110mm |
| 出力 STROKE STRENGTH | FE-T50W: 50Kgs |
| 速度 Speed | 25~100 mm/min |
| 控制模式 Control mode | 自動與寸動 |
| 推拉壓力 Push-Pull power | FE-T50W: 依錶規格Depend on gauge 5&50 |
